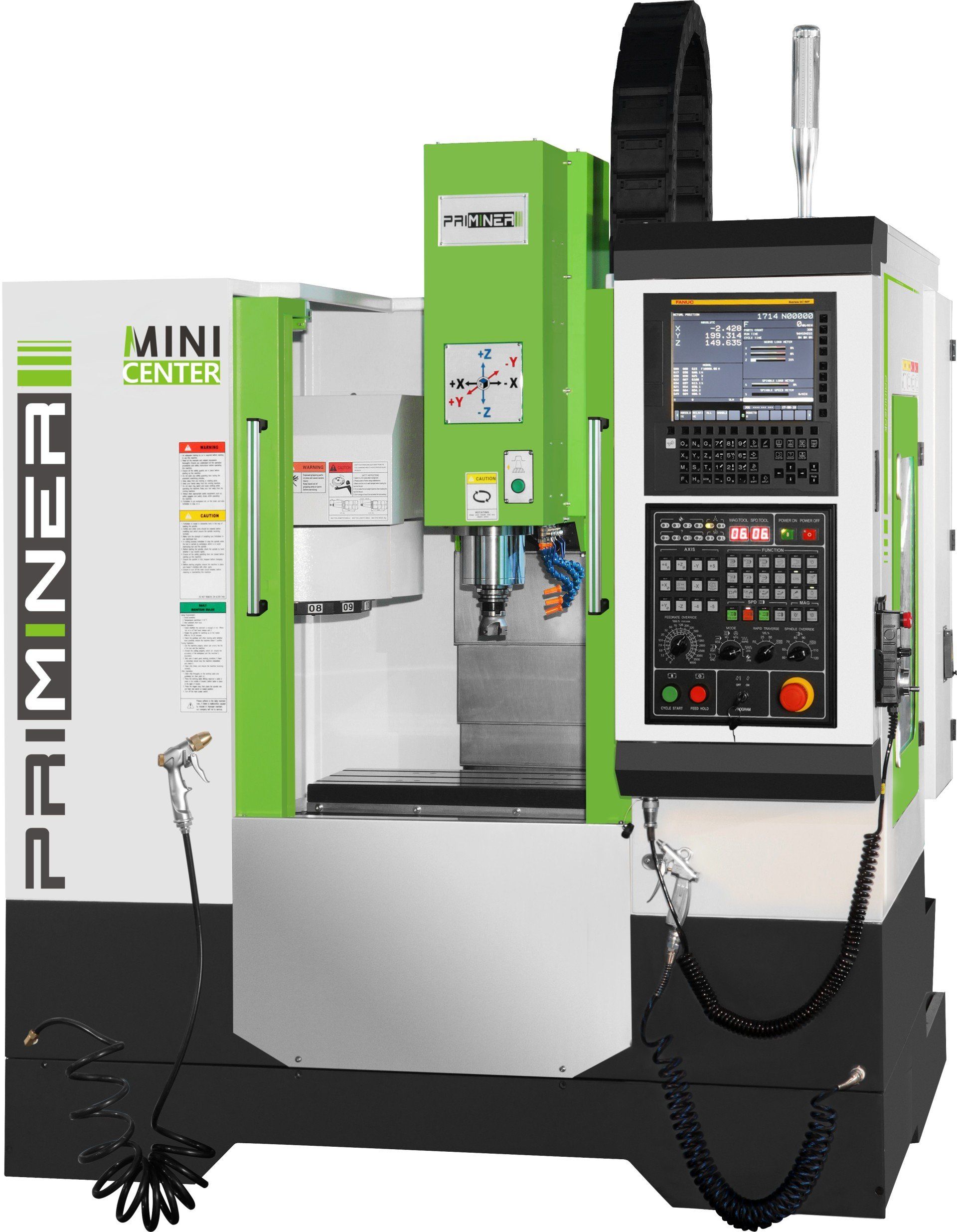

MINI CENTRE
MINI CENTRE
Technical Specifications Mini Center
Table
Table size mm 650 x 300
T-slot (width x number x distance) mm 14 x 3 x 100
Max. load kg 200
Travel
X / Y / Z Travel mm 500 / 300 / 400
Spindle nose to table distance mm 120 - 520
Spindle center to column distance mm 340
Spindle
Spindle taper SK 40 / BT 40 / CAT 40
Spindle servo motor kW :4.8 / 19 Siemens / 5.5 / 7.5 Fanuc
Spindle speed min-1 :10.000
Feed
Rapid speed m/min X/Y: 20, Z: 12
Cutting speed mm/min 1-10.000
Tool changer
Number of tools pcs. 12
Max. tool length mm 280
Max. tool diameter mm 80 / 120
Max. tool weight kg 8
Accuracy
VDI 3441 (Full travel) mm
Positioning accuracy 0.012;
Positioning repeatability 0.008
