POWER CENTRE
Models : V11                   V15                          V18
- Cast iron is tempered for stress relief to ensure structural stability
   without deformation.

- C3 class ballscews ensure the highest accuracy and durability.

- Pre tension on all axes minimizes thermal distortion.

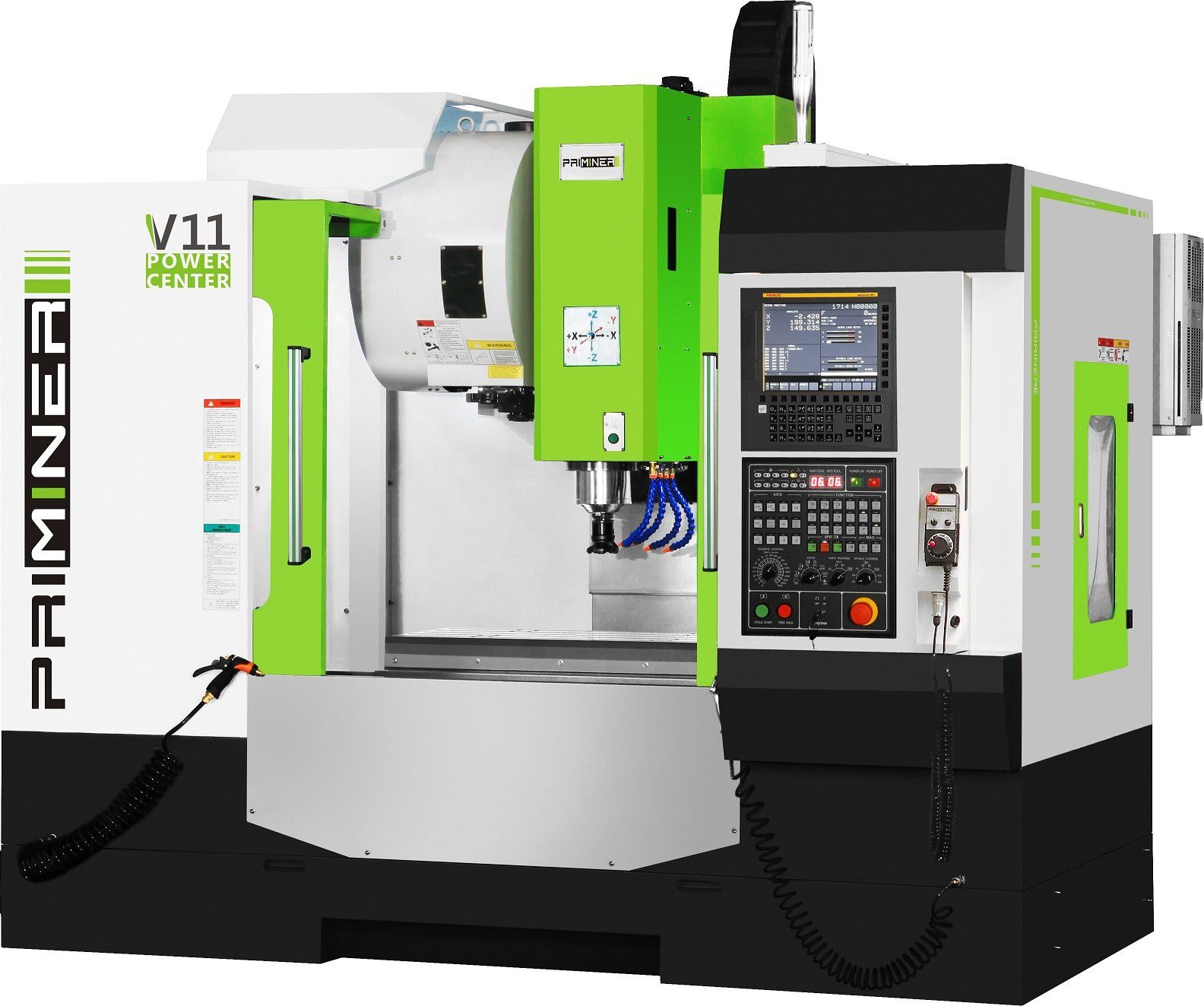

POWER  CENTRE V11
Table
Table Size 1200×600MM
T slot (width*number*distance) 18×5×110MM
Max.load 800KG
Travel
X/Y/Z travel 1100/600/560MM
Spindle nose to table 150-610MM
Spindle center to column 638MM
Spindle
Spindle taper and diameter BT40/150MM
Spindle speed 8000RPM
Spindle motor power 15/18.5KW
Feed
Rapid feed 20M/MIN
cutting speed 1-8000MM/MIN
X/Y/Z motor power and torque 2.5KW/22NM
Arm Tool changer
No. of tools 24
Max.tool length 300MM
max. diameter 78MM/120MM(next release)
Max. tool weight 8KG
Tool changing time(Cam box) 1.6 SEC.
Accuracy
Positioning accuracy ±0.005/300
Positioning repeatability 0.005
General
Coolant tank capacity 130L
Coolant flow rate 40L/min
Air pressure 0.6Mpa
Airflow rate 130L/min
Power requirement 25KW
Dimension 3200×2200×2900MM
Weight 8000KG
